DEUTZ SerDia

SerDia Deutz diagnostic software

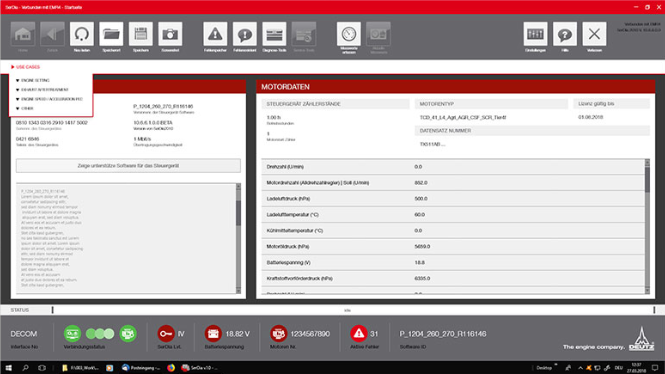

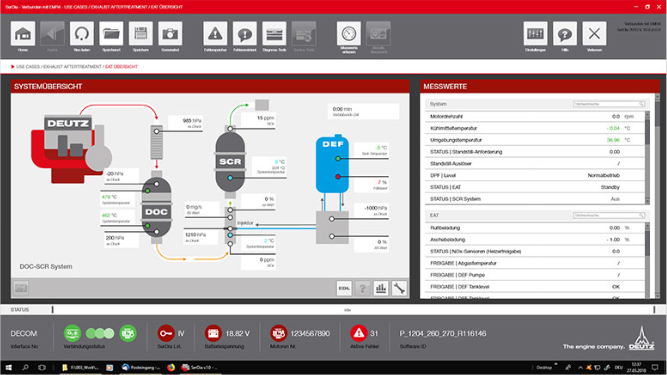

SerDia is the DEUTZ AG diagnostic tool used by service technicians worldwide, which enables professional commissioning, diagnosis and maintenance of all DEUTZ engine series.

Take advantage of the opportunity to optimize the engine for your application and avoid downtime by regular maintenance and quick diagnosis in case of a fault.

In order to always operate your DEUTZ engine with the latest engine control unit software, SerDia offers updates for your DEUTZ engine via the integrated web service. In return, the engine data is fed back to our engine cloud. Use our SerDia Update Tool to install SerDia and benefit continuously with further developments.



SerDia 2000

  • Interface:
    • HS-Light (Access-Level controlled)
  • Supported ECU´s:
    • EMR1, EMR2
    • EMR3 (EDC7, EDC16)
    • Deutz-EMS, MVS
    • EMS2.1, EMS2.2, V-ECU
  • Operating systems:
    • Windows XP
    • Windows 2000





















SerDia 2000

SerDia 4.0

  • Interface:
    • HS-Light (Access-Level controlled)
    • DeCom - DEUTZ Communicator (Access-Level controlled)
  • Supported ECU´s:
    • EMR G1/G2
    • EMR L1
    • EMR5 (MD1)
    • EMR4 (EDC17CV52, CV56B, CV54 )
    • EMR3, (EDC16UC40, EDC7UC31)
    • EMR2
  • Operating systems:
    • Windows 10 (32 and 64 bit)
    • Windows 11 (32 and 64 bit)
  • Processor:
    • Processor with >= 1 GHz
  • RAM:
    • 4 GB
  • Hard drive:
    • 5 GB
  • Display:
    • 1920x1080 (full HD) / 100% Windows zoom (other resolutions are possible with restrictions)
  • Internet:
    • connection available





SerDia 4.0
